SK 2*32 PLC Fiber Optic Splitter For FTTH Network , Optical Fiber Coupler

Product Details:

Place of Origin:	China
Brand Name:	TTI
Certification:	ISO, SGS, ROHS
Model Number:	PLC-232

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	2-3 days

Download PDF Submit your Inquiry

Features

Detailed Product Description

Connector Type:	SC,FC,LC,ST	Ferrule End-face:	PC, UPC,APC
Fiber Type:	G652D G657A1 G657A2	Fiber Mode:	Singlmode
Package:	Steel Tube, ABS	Structure:	2x32

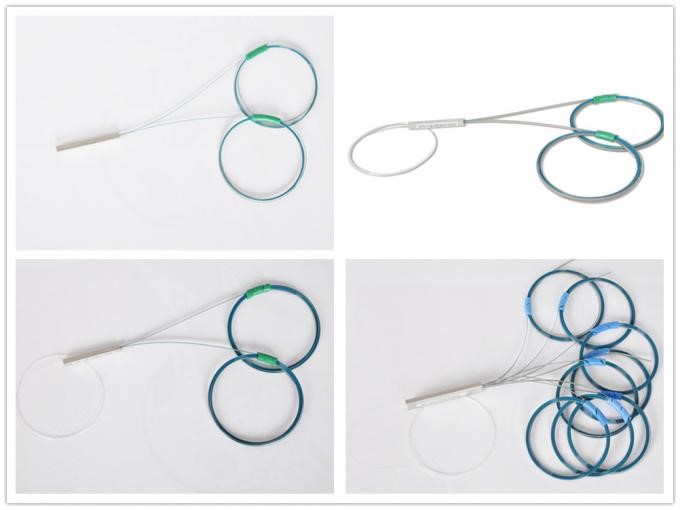

2*32 PLC Fiber Optic Splitter for FTTH Network with Color Fiber

Description:

PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function

Feature:

Good high temperature low temperature performance

Convenient engineering applications

Tight and fine structure
Excellent parameters on IL & RL

High reliability and directivity

Non-sensitive wavelength

Fine polarization

Wide scope wavelength

Application:

FTTX (FTTB, FTTH, FTTC) Systems

Optical Signal Distribution

Fiber optical sensors

Passive Optical Network (PON)

Cable Television (CATV)

Fiber optical communication system

Specification

Specification:

Table 1 – 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS
