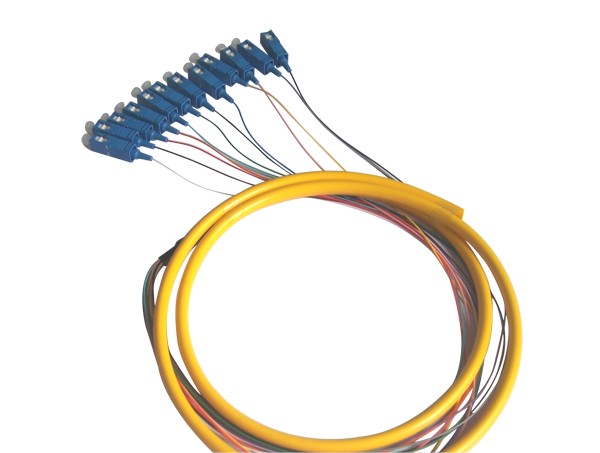

SK 12 core bundle
Outline：
For communications networks, fiber optic CATV equipment, computer network
interface.
Features
Outline：
For communications networks, fiber optic CATV equipment, computer network
interface.
Key Features：
Precision zirconia ceramic ferrule, and a PC, UPC, APC to choose from, there
are single-mode, multimode.
Fiber diameter has φ0.9mm, φ2.0mm, φ3.0mm optional, there are two types of
ribbon and the general
Insertion loss: ≤ 0.2dB
Return loss: PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60Db
Specification
Ordering Guide：
|
Name |
Model |
The fiber length mm |
Remarks |
|
12 Core FC Pigtail |
LZ—12WQ FC |
1.5m |
A single mode, multimode, single-core, dual-core variety of types; insertion loss <0.3db |
|
12 Core ST Pigtail |
LZ—12WQ ST |
||
|
12 Core SC Pigtail |
LZ—12WQ SC |
||
|
12 Core LC Pigtail |
LZ—12WQ LC |
